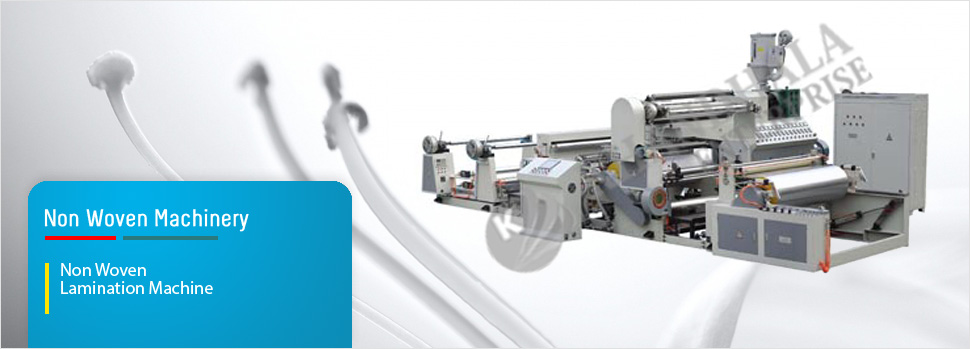

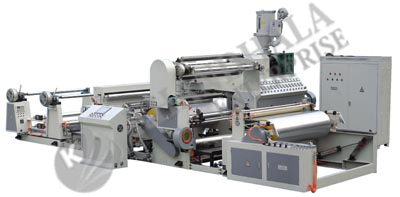

Lamination Machine(BEST QUILTIY)
APPLICATION :
Paper-plastic compels, plastic-plastic compels, aluminum-plastic compels
Paper-aluminum-plastic compels, non woven –plastic compels all of-adhesive series

FEATURES :

This series of products are made by compounding fluid,plastic film,woven cloth or aluminum foil into double layer,three layer or multi-layer new materials,which are used for packing products of cement,chemicals,forage,food,medicine,adhesive tape cloth,plastic coating paper cups and fast food boxe4s etc...

  • PLCman-machine interface with central control,integrally designed with machine and electricity system.
  • Its support with a double feeder,high effectie corona unit and automatic hydraulic exchanging filter screen are the first invention of its king at home,which can increase the strength go strip the products.

Main Technical Parameter :
ITEM／TYPE KHJM-800 KHJM-1100 KH-C800
Production speed 40-100pcs/min 40-100pcs/min 40-100pcs/min
Bag width 100-900mm 100-900mm 100-900mm
Bag length Non Woven fabric 200-480mm 200-580mm 200-680mm
specification(G.S.M) 30-100gsm 30-100gsm 30-100gsm
Power supply 380V/220v 380V/220v 380V/220v
Total power 11KW 13KW 15KW
Overall size 6000×1650×1800mm 6000×1750×1800mm 6000×1850×2000mm

We will no longer inform you if there is any data change

ITEM／TYPE KHJM-800 KHJM-1100 KHJM-1300 KHJM-1600 KHJM-1800
Length of die lip 900mm 1200mm 1400mm 1800mm 2000mm
Width of finished product 400-700mm 500-1000mm 600-1200mm 800-1500mm 900-1700mm
Max compounding speed 10-150m/min 10-150m/min 10-150m/min 10-150m/min 10-150m/min
Thickness of shower film 0.01-0.03mm 0.01-0.03mm 0.01-0.03mm 0.01-0.03mm 0.01-0.03mm
L/D ratio for screw 32:1 32:1 32:1 32:1 ø140mm×32
Max.diameter for roll unwinding and rewinding ø1200mm ø1200mm ø1200mm ø1200mm ø1200mm
Overall size 12000×6000×
3200mm		 12500×7000×
3200mm		 1300×8000×
3200mm		 12000×9000×
3200mm		 13000×12000×
3200mm
Power 60kw 70kw 80kw 100kw 130kw
Compounding/mirror cool roll ø510mm ø510mm ø510mm ø510mm ø600mm
Applicable for base material BOPP、 BOPET、 BOPA 、CPP 、CPE   Paper 、Aluminum foil、Non Woven Machine


LAMINATION MACHINE( THIS IS USE FOR SPEACIALLY NON WOVEN AND WOVEN)

1600 model non woven compound machine, Single screw plastic extruder specification.

Screw Dia： 105mm
Screw Length：2.8M
Screw material： 38 Chromium nitride treatment
Max Output：75KG/H
Head quantity： 1
Head Length： 1600

Plastic coated composite machine specification

1. Rolls quantity: 3（iron roller、rubberroller、mirror roller）
Width：1400mm
Speed： 30～100m/min

2. CorrectorHydraulicPressure (Wenzhou)

3. Winding: Pneumatic Winding unit

4. Machine machine (frequency conversion): 18.5KW (Shanghai)

5. Dragger: 11KW (Shanghai)
Iron Roller: Seamless Tube
Rubber roller: neoprene latex

6. Dryer: 7.5KW (Shanghai)

7. Color film stand: 1 set

8. non woven stand: 1 set

9. Air Pump: 1 set

10. Distribution box: Automatic temperature control, Frequencychanger, AC contactor(Shanghai)
